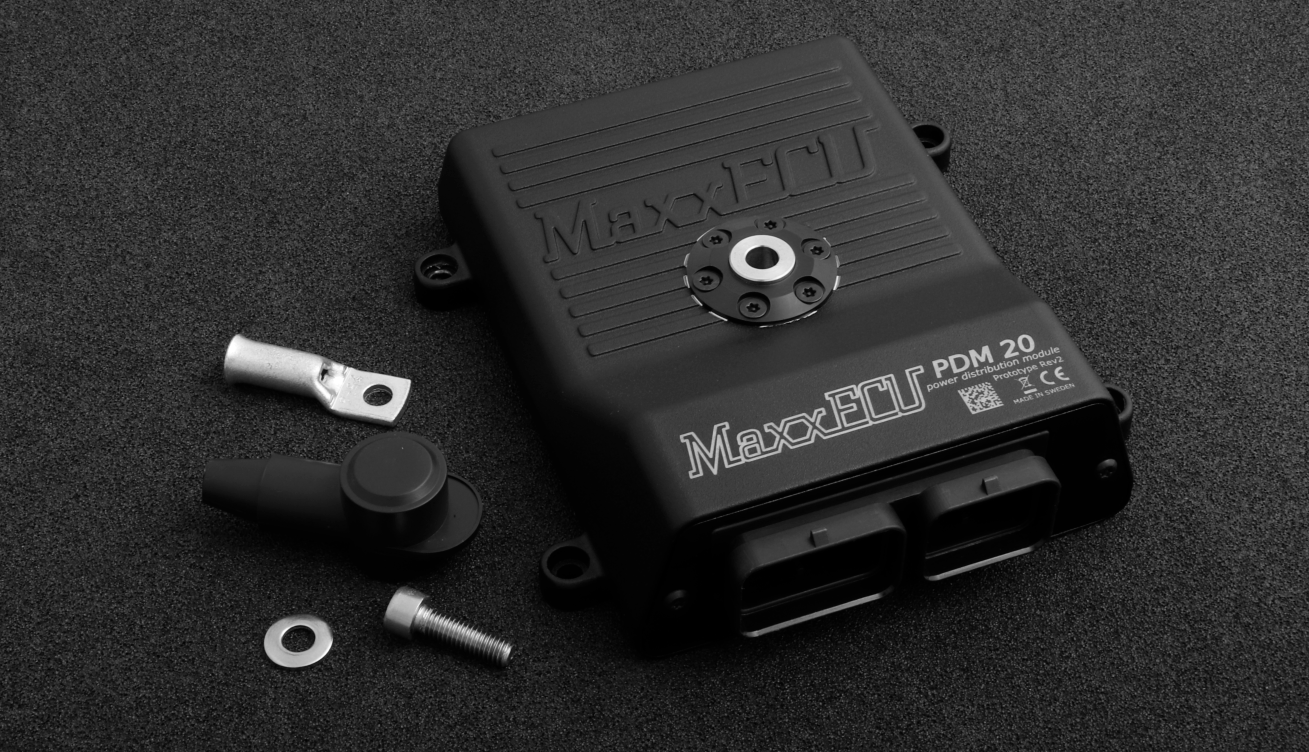

- The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.
Selected features
- Max 230A
- 20 outputs (8x25A 8x15A 4x8A)
- 7 digital / analog 0-24V inputs
- All outputs can be PWM controlled
- Dedicated +5V power supply and sensor ground
- CAN bus for communication and setup management with MaxxECU MTune PC software
- Overcurrent protected adjustable levels with automatic restart with soft start option
- Warning levels for under over currents
- Works with all MaxxECU devices
- Support for CAN keypads
- Error code handling
- Built-in energy saving mode that draws only 0.004A
